   DYNAMOMETER



The Dynamometer has proven to have limitless versatility as a tension and weight measuring instrument. It is used for suspended weighing, mounting cables, adjusting tension wires, field testing wire rope, - anything that require precision force or tension measurement.

An official Certificate of Calibration traceable to NIST, dated and signed, accompanies each dynamometer. Experienced technicians calibrate each instrument on an individual basis making certain that all parts are carefully adjusted and that every unit is within stated accuracy tolerances before it leaves the factory. ASME b30.26 compliant.
Features:
• 5” Dial
• Accuracy 0.5% of full range
• No batteries required
• Two universal shackles
• NIST certificate of calibration
• Max. load indicator (dials remain at peak load)
• Temperature range -50 to +140 F
• Zero control up to 20% of capacity
• Comes with ABS hard plastic carrying case
• Weight 9 Lb.

Model DYN-1000
• Range 0-1000 Lb.
• Scale resolution (Divisions) 10 Lb.

Model DYN-2000
• Range 0-2000 Lb.
• Scale resolution (Divisions) 20 Lb.

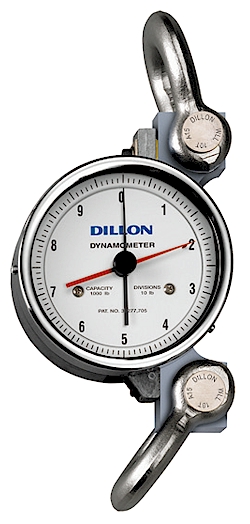

Model DYN-1000
