  Wall mounted purifier developed for elevators cabins and effectively disinfect inside air and walls.


Model APWM

Elevator Cabin Air Disinfection Purifier


• Highly efficient air disinfection and purification

• Slow disinfect release molecular replaceable filter

• Automatic operation with occupancy sensor

• RS485 interface for remote control

• Ultra-thin design for easy installation and maintenance

• Wall mount aluminum alloy enclosure

• Backside self-adhesive tape

• Power adapter included

Cab Air Purifier PDF flyer
Cab Air Purifier
PDF flyer

Cab Air Purifier Installation PDF flyer
Cab Air Purifier Installation
PDF flyer


Air Disinfection Purifier developed for elevators cabins and can effectively disinfect air and walls inside, as well as maintain hygiene and environmental protection.

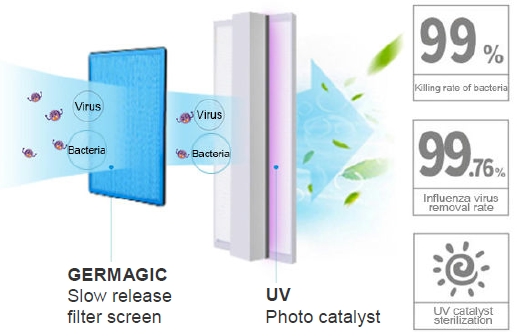

Air Disinfection Purifier utilizes GermagicTM molecular filter and UV photo catalyst. GermagicTM - the material that slowly releases chlorine dioxide molecules. It is powerful and non-poisonous disinfectant recommended by World Health Organization.

Enclosed UV photo catalyst permits no UV leakage. Disinfection rate of virus and bacteria exceeds 99%. Disinfection in depth can reduce transmission of droplets and aerosol without side effect on human body.

Occupancy sensor recognizes presence of passengers and activates air disinfection. Once passenger gets off, the delayed shutdown function will run unit to ensure elevator disinfection before next service. This function can be overwritten with "Always ON" switch.

GermagicTM molecular filter and UV photo catalyst are easy to replace and available for purchase.


Circulating air volume 35CFM
Disinfection bacteria killing technology Germagic slow released molecules and UV photo catalyst
Disinfection efficiency 99%
Killing rate of influenza A and influenza B viruses 99%
Killing rate of MERS coronavirus 98%
Noise 45dB(A)@1m
Way of air flow in and flow out Bottom Intake, front return
Rated voltage of power adapter 100-240VAC, 1.5A, 50/60Hz, / 24VDC 2.5A
Max operation current 24VDC, 1.2A
Rated power / Standby power 30W / 3W
Range of working temperature -4°F to 113°F
Range of working humidity Relative humidity from 5% to 95%
Maintenance requirement Top maintenance of filter
Maintenance period for Germagic slow release molecular filter 90 days, typical
Maintenance period for UV photo catalyst assembly 360 days, typical
External dimensions (width×height×depth) 11-3/4"W x 6"H x 2-5/8"D
Net weight 3.3Lb.
